產品詳情

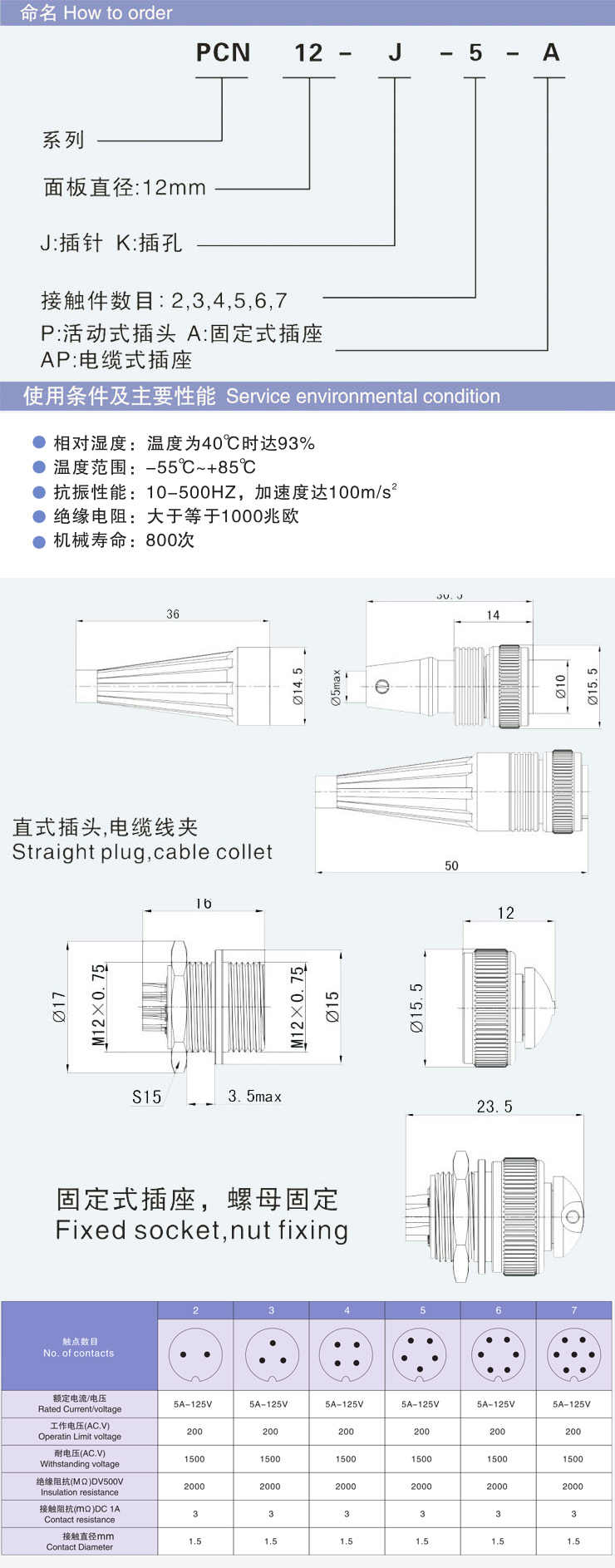

PCN12系列連接器外殼配合尺寸為12mm,接觸對數量有2、3、4、5、6、7芯六種，可直接安裝在面板上使用，連接器外殼為鋁合金，外形小巧美觀，重量輕，連接器形式為螺紋連接，點連接可靠，使用方便。本產品適用于各種儀器儀表，電子設備等交直流電路的連接。
PCN series connector installation size is 12mm,contact number from 2 to 7pins,can be directly installed on the panel,connector housing is made of aluminum alloy,small and beautiful appearance,light weight,the electric connection is reliable,easy to use .this product is suitable for all kinds of instruments and meters,electronic equipment connected to the AC or DC circuit.
| PCN系列 | |||
| PCN12J2A | PCN12J3A | PCN12J4A | PCN12J5A |
| PCN12J6A | PCN12J7A | PCN12K2A | PCN12K3A |
| PCN12K4A | PCN12K5A | PCN12K6A | PCN12K7A |
| PCN12J2AP | PCN12J3AP | PCN12J4AP | PCN12J5AP |
| PCN12J6AP | PCN12J7AP | PCN12K2AP | PCN12K3AP |
| PCN12K4AP | PCN12K5AP | PCN12K6AP | PCN12K7AP |
| PCN12J2P | PCN12J3P | PCN12J4P | PCN12J5P |
| PCN12J6P | PCN12J7P | PCN12K2P | PCN12K3P |
| PCN12K4P | PCN12K5P | PCN12K6P | PCN12K7P |
